T-N3 SLIM
    • Shown here in Midnight Blue Nitro finish with Blackguard and Black hardware.

    Nashville T-style electric. Hand-made, Custom Shop, Semi-hollow body with Reverse Headstock.

    CLICK HERE to watch the T-N3 SLIM model demo by Jay Leonard J.

    Redefining sexy for a classic design, the T-N3 Slim is available in your choice of colours in two distinctly different finish types.
    1) Oil based pigment and dye.
    2) Fine sprayed non-gloss Nitro.

    Sounding mature beyond its years, customize your build with your choice of our three custom-voiced hand-wound Nashville pickup sets.
    1) Thunderhead
         Master your gain stages.  Don't take that the wrong way.  We've
         tweaked this set to handle higher gain found in classic Plexi's,
         100W SL's, and even Boogies; but it all cleans up so well you
         may momentarily forget you are Texas slaying or Puppet
         riffing.
         Neck:       Mexas Mojo (SRV to Vai and then some)
         Middle:    Big Fella (Loud and aggressive with sweet roll-off.
                             This pickup has a steel base-plate for greater
                             midrange punch)
         Bridge:     T22X (50's classic tone refined by using Alnico 5 on
                             the low strings and Alnico 2 on the high strings)

    2) Diplomat
         Masterfully taking on anything you can throw at it.  This is our
         'all-rounder' set and we dare you to find something it can't do.
         This is the only guitar you need to take to your cover gig.
          Neck:     Trestle Twang (classic T tone with Raw Nickel cover)
          Middle:  S61 (Vintage S vibes)
          Bridge:  T22X (50's classic tone refined by using Alnico 5
                            on the low strings and Alnico 2 on the high strings)

    3) 507
        Enough twang to play your favourite Honky Tonk. Chickin'
        pickin' delight. Teeth, spank, and sweet sustain.
          Neck:     Trestle Twang (classic T tone with Raw Nickel cover)
          Middle:  Equality 54 (earliest S tones)
          Bridge:  Trestle Twang (shred your country licks)

    To maximize resonance and voicing, no grain filler is used on this Ash topped, Mahogany back & sides custom build with fine Nitro non-gloss finish.

    T-N3 SLIM

    C$3,995.00Price

    • FULL SPECIFICATIONS

      SERIES: T-Line

      MODELl: T-N3 Slim Rock

      • Serial #: 033S2RD313

      CUSTOM COLOUR:
      Midnight Blue

      FINISH:
      Hand Rubbed Pigment & Dye / Natural Woodgrain (Open pore, no grain-filler) with Satin Topcoat for maximum resonance.

      BODY:
      Mahogany Back & Sides / Ash Top.

      PICKGUARD:
      Black with white bevel.

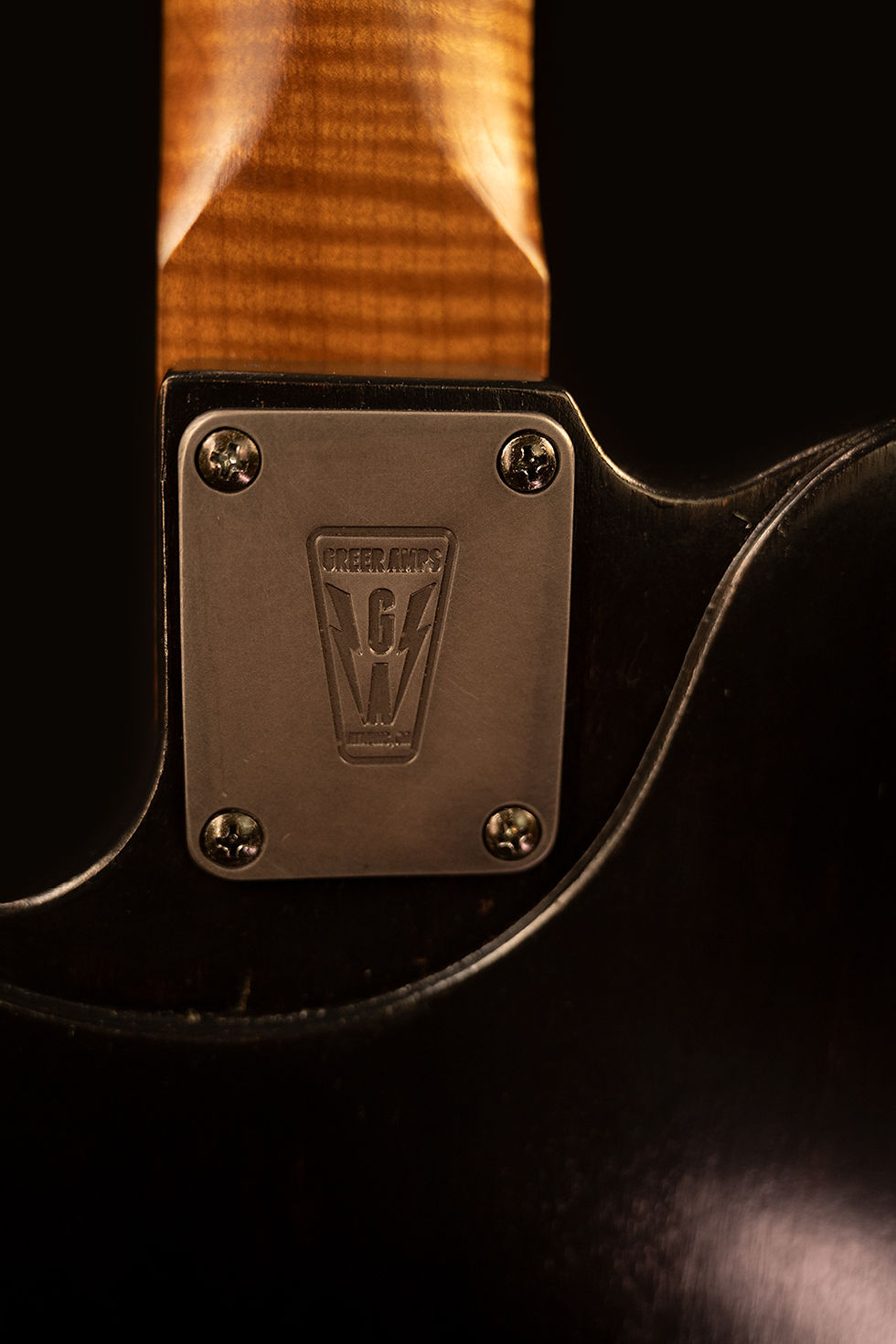

      NECK:
      Bolt On with High Grade Quarter-Sawn Torrified Maple.
      Custom C profile.

      FRETBOARD:
      Rosewood with White Dots.
      21 Jescar .047x.095 Nickel Frets.

      SCALE:
      25.5 Inch

      TRUSSROD:
      Dual Action Spoke Wheel

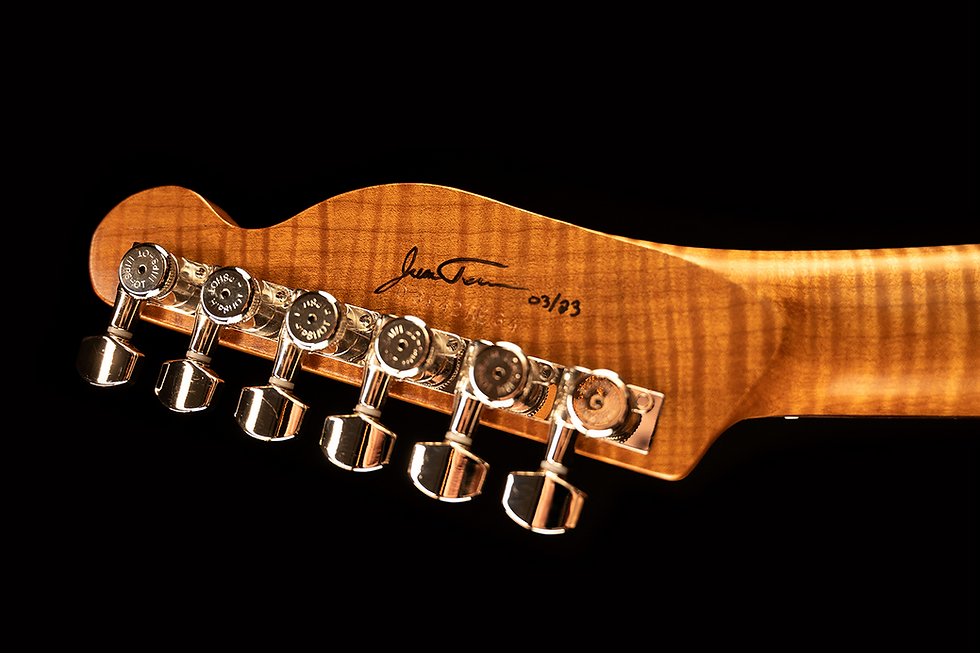

      MACHINE HEADS:
      Hipshot. 6 in-line, staggered, locking tuners (Nickel)

      STRING TREE:
      Graphtech Black Tusq

      NUT:
      Graphtech Tusq

      BRIDGE:
      Nickel Babicz Single Coil Z Series T Bridge with FCH eCam Saddle Tech.
      String through body.

      PICK UPS:
      PegCity Hand-wound 'Nighthawk' Nashville configuration.
      Custom voiced for all things Rock while maintaining versatility.

      • NECK: 7.3K Alnico 5 on Low strings / Alnico 2 on High strings.
        Classic Steel cover.
        Waxed / RWRP Hum cancelling / 42 awg poly-coated wire / vintage pushback cloth
      • MIDDLE: 9.0K Alnico 5.
        Waxed / RWRP Hum cancelling / 323 awg wire / with Steel baseplate
      • BRIDGE: 8.4K Alnico 5 on Low strings / Alnico 2 on High strings.
        42 awg polyurethane coated wire / Waxed / RWRP Hum cancelling

      CONTROL PLATE:
      Custom Hand-wired 5-way Oak Grigsby switch
      500K CTS Audio Taper Pots
      Emerson .015 Paper-in-oil cap

      INPUT:
      Pure-tone jack / Electrosocket housing

      KNOBS:
      Black Pearltop Chrome Domed
